Our spin flash dryer eliminates the pollution and the technology reaches to the international advanced level. It's equipped with induction cooling (water cooling), the oil pump is connected with the oil sending lubrication and cooling bearing. The sealing device has superior performance. The main shaft adopts the half ring type design, the motor uses speed adjusting motor, so the transmission is stable, the noise is small and the life span is 10 times longer than the same products.
Appilcation
chemical industry
food industry
Structure of Spin Flash Dryer

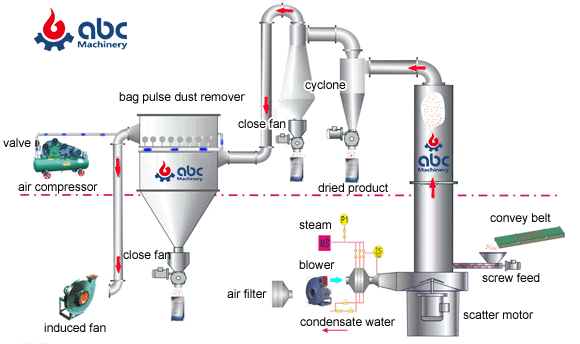

How Does Spin Flash Dryer Work?
We Are the Best Spin Flash Dryer Manufacturer
We provide the latest spin flash dryer price from manufacturers, according to your requirements, choose the right machine. Our technical force is abundant, the production of the spin flash dryer quality of high quality, high efficiency and energy saving, and get certification, we worthy of your trust!
Features of Spin Flash Dryer for Sale
- It combines the technologies of whirl, fluidization, spouting velocity and crush and classification.
- It is compact and small in size, high in production efficiency and continuous in the production. It has realized that “a small equipment can perform the large production” .
- The drying capacity is big but its energy consumption is low. Its heat efficiency can go up to more than 70%.
- The materials staying time is very short. The quality of the final product is very good. It can be used to dry the sensitive materials.
- For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution.
| Model | Diameter of barrel(mm) | Dimension(mm) | Power(kw) | Blowing rate(m3/h) | Water evaporation(kg/h) |
|---|---|---|---|---|---|
| GC-XSG-2 | 200 | 300×2800 | 5-9 | 300-800 | 10-20 |
| GC-XSG-3 | 300 | 400×3300 | 8-15 | 600-1500 | 20-50 |
| GC-XSG-4 | 400 | 500×3500 | 10-17.5 | 1250-2500 | 25-70 |
| GC-XSG-5 | 500 | 600×4000 | 12-24 | 1500-4000 | 30-100 |
| GC-XSG-6 | 600 | 700×4200 | 20-29 | 2500-5000 | 40-200 |
| GC-XSG-8 | 800 | 900×4600 | 24-35 | 3000-8000 | 60-600 |
| GC-XSG-10 | 1000 | 1100×5000 | 40-62 | 5000-12500 | 100-1000 |
| GC-XSG-12 | 1200 | 1300×5200 | 50-89 | 10000-20000 | 150-1300 |
| GC-XSG-14 | 1400 | 1500×5400 | 60-105 | 14000-27000 | 200-1600 |
| GC-XSG-16 | 1600 | 1700×6000 | 70-135 | 18700-36000 | 250-2000 |
